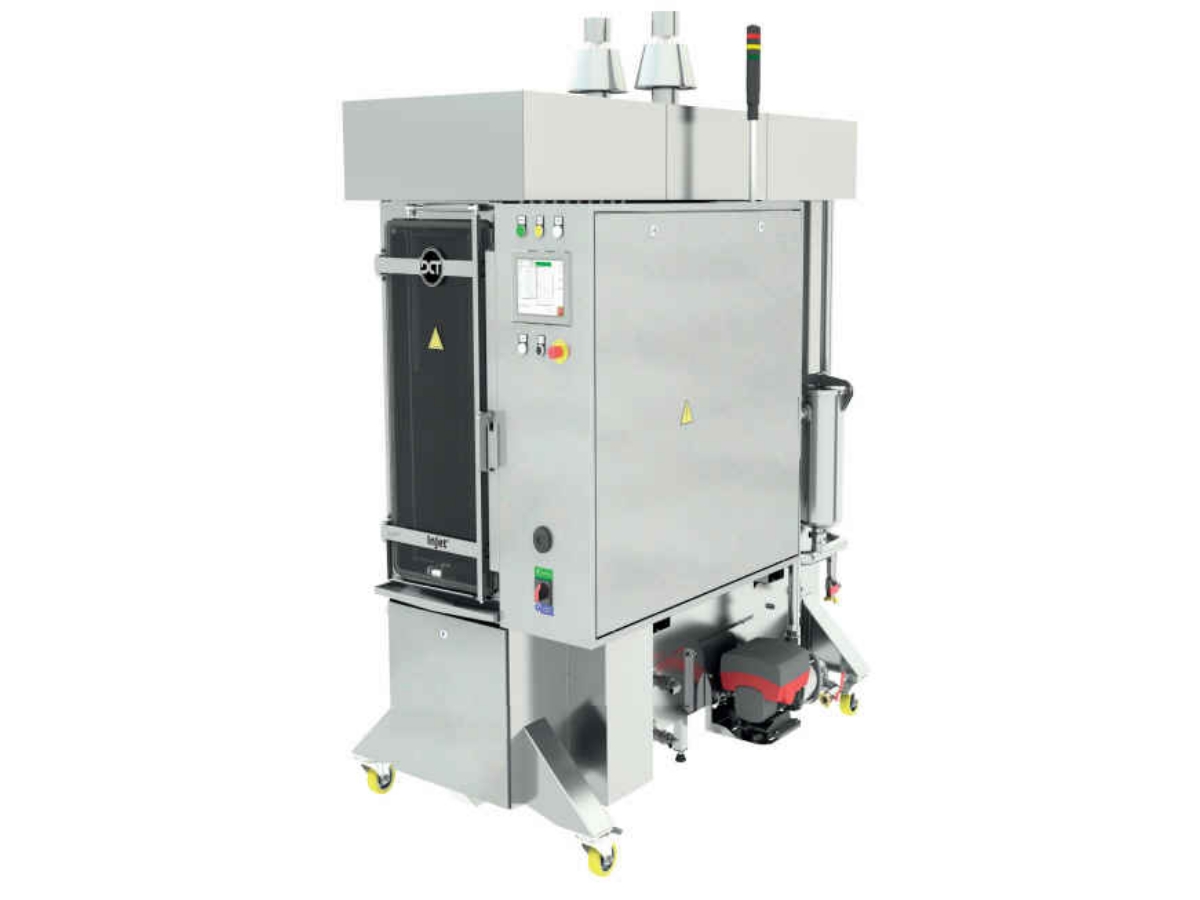

InJet 3179 CRD BIG Board

InJet 3179 CRD BIG Board developed for cleaning oversize: stencils, PCBA post reflow and misprints.

InJet® 3179 CRD is designed to remove solder pastes and SMT adhesives from non-standard oversized stencils up to 100 x 1700 x 900 mm,.
The size of the process chamber also provides the possibility of inserting and simultaneously cleaning 2 standard 29 “x 29” stencil.
The InJet® 3179 CRD is a 100% closed-loop system which includes cleaning, rinsing and drying technology.
All of the processes are fully automated, and take place in one process chamber.
To facilitate its positioning in the production area is placed on 4 wheels.
All washing processes can be monitored and archived.

Technical specifications

  • Dimensions: (l x l x h) 1170 x 2160 x 2015 mm
  • Weight: 900 kg
  • Energy consumption per cycle: 2,5 kWh
  • Cleaning and rinsing fluid consumption per cycle: 0,05 – 0,3 l
  • Compressed air consumption per cycle: 1500 l/ciclo
  • Max. dimensions of the cleaned parts: 100 x 1700 x 900 mm
  • Exchangeable mechanical filter of cleaning and rinsing fluid: 5 – 200 μm
  • Operating pressures cleaning: 1,5 Bar – 3,5 Bar, rinsing: 0,3 Bar – 2,0 Bar
  • Cleaning fluid flow rate: 400 l/min
  • Temperature range setting of the cleaning and rinsing fluid: From ambient temperature to 60°C
  • Conductivity range settings of the rinsing fluid in the tanks: 0 – 2000 μS/cm * optional
  • Temperature range setting of the drying: From ambient temperature to 80°C
  • Noise level: < 70 dB
  • Device control PLC + touchscreen PLC: 8,4“
  • Volume of the storage tanks: 125 l
