InJet® 388 CRRD “Combo”

InJet® 388 CRRD “Combo” for clean: PCBA post reflow, stencils, squeegees and misprints.

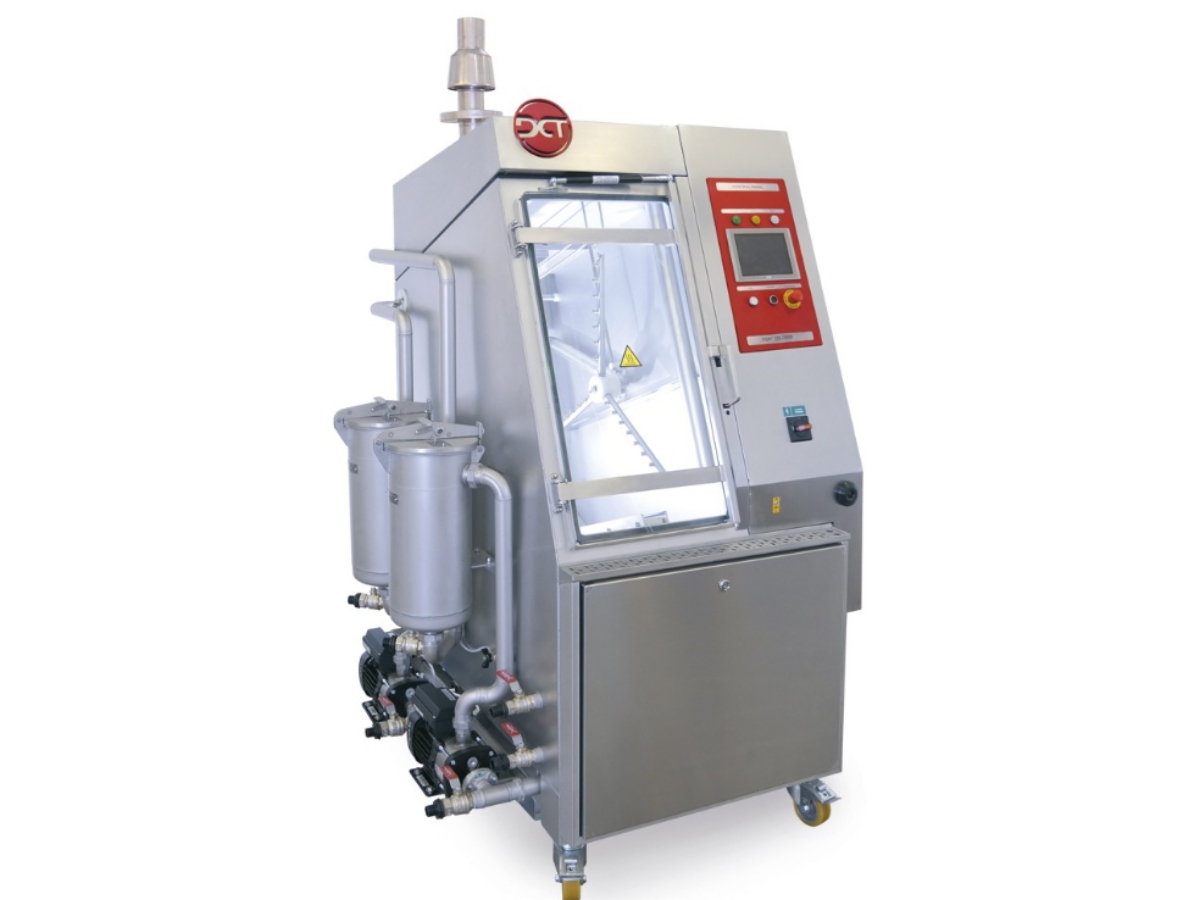

The InJet® 388 CRRD “Combo” is a completely stainless steel vertical Spray-In-Air cleaning system.
This machine is primarily designed for precision plate cleaning after soldering.
Besides the above mentioned applications, this cleaning system can also be used for high-quality removal of solder pastes and SMT adhesives from stencils, PumpPrints, squeegees and misprints. It is also possible to use the machine to remove the cured conformal coating.
InJet® 388 CRRD “Combo” is a 100% closed-loop system which includes cleaning,pre- rinsing, final rinsing and drying technologies.

All of the processes are fully automated, and take place in one process chamber.
With the double carbon and resin filters, it can control the ionic contamination of pre rinsing and rinsing ID water up to 1 uS/cm.
To facilitate its positioning in the production area InJet InJet 388 CRRD Combo is placed on wheels.
All washing processes can be monitored and archived.

Technical specifications

  • Dimensions: (l x l x a) 1410 x 1390 x 2400 mm
  • Weight: 560Kg
  • Energy consumption per cycle: 1,65 kWh
  • Cleaning and rinsing fluid consumption per cycle: 0,05 – 0,3l
  • Compressed air consumption per cycle: 900 l/ciclo
  • Max. dimensions of the cleaned parts: 190 x 800 x 760 mm
  • Max. dimensions of the cleaned part with used air knife: 100 x 800 x 760 mm*
  • Exchangeable mechanical filter of cleaning and rinsing fluid: 5 – 200 μm
  • Spraying pressure / 45°C / 113°F: 2,2 Bar**
  • Range pressure – cleaning / 45°C / 113°F: 0,9 – 2,8 Bar**
  • Range pressure – pre rinse / 45°C / 113°F: 0,0 – 1,5 Bar**
  • Range pressure – rinse / 45°C / 113°F: 0,0 – 0,5 Bar**
  • Cleaning fluid flow rate: 200 l/min
  • Temperature range setting of the cleaning and rinsing fluid: From ambient temperature to 60°C
  • Conductivity range settings of the rinsing fluid in the tanks: 0 – 2000 μS/cm * optional
  • Temperature range setting of the drying: From ambient temperature to 80°C
  • Noise level: < 70 dB
  • Device control PLC + touchscreen PLC + touchscreen: 8,4″
  • Volume of the storage tanks: 60 l

* Air knife is optional accessory
** Values may vary depending on equipment(filters, pumps)
