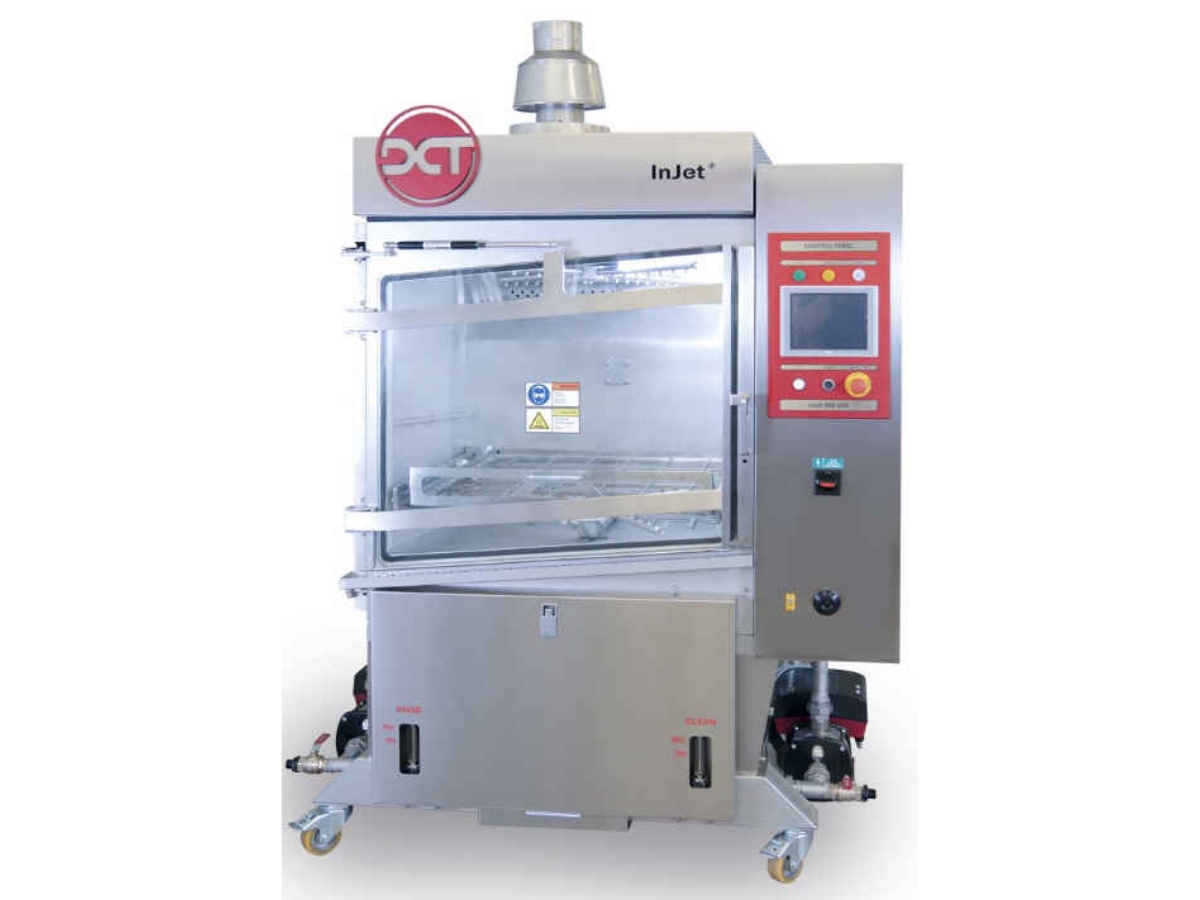

InJet® 888 CRD-1F

InJet® 888 CRD-1F for removing flux residues from solder frames or for maintenance.

InJet® 888 CRD-1F is designed primarily for removing flux residues from solder frames or for maintenance cleaning of soldering equipment parts.
The designation 1F indicates a 1-floor solution, primarily intended for cleaning larger parts.

The InJet® 888 CRD-1F is a 100% closed-loop system which includes cleaning, rinsing and drying technologies. All of the processes are fully automated, and take place in one process chamber.
To facilitate its positioning in the production area is placed on wheels.

All washing processes can be monitored and archived.
The cleaning system can also be used for the high-capacity cleaning of PCBA post reflow.
With the carbon and resin filters, it can control the ionic contamination of pre rinsing and final rinsing ID water up to 1 uS/cm.

Technical specifications

  • Dimensions: (l x l x h) 1620 x 1400 x 2350
  • Weight: 660 kg
  • Energy consumption per cycle: 3,3 kWh
  • Cleaning and rinsing fluid consumption per cycle: 0,2 – 0,5 l
  • Compressed air consumption per cycle: 1500 l
  • Max. dimensions of the cleaned parts: 850 x 800 x 600 mm
  • Exchangeable mechanical filter of cleaning and rinsing fluid: 5 – 200 μm
  • Operating pressures frequency converter: 2,4 Bar
  • Cleaning fluid flow rate: 210 l/min
  • Temperature range setting of the cleaning and rinsing fluid: From ambient temperature to 60°
  • Conductivity range settings of the rinsing fluid in the tanks: 0 – 2000 μS/cm * optional
  • Temperature range setting of the drying: From ambient temperature to 80°C
  • Noise level: < 70
  • Device control PLC + touchscreen PLC: 8,4“
  • Volume of the storage tanks: 85 l

* Maximum dimension in operation condition
